Description

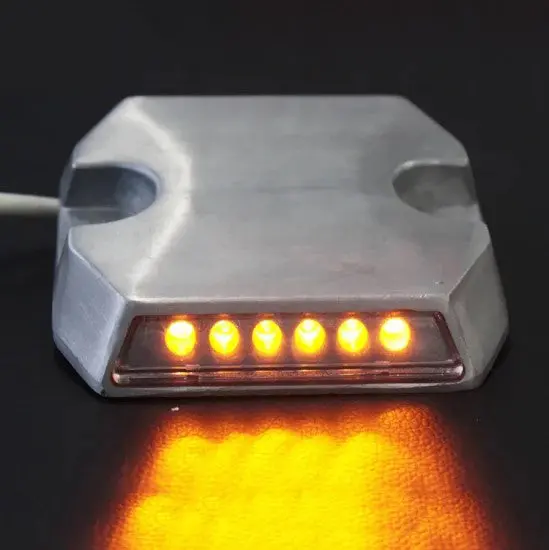

This aluminum raised marker is designed for tunnel, bridge and barrier that provides safety warning for drivers. The power supply is wired and use LED technology for energy saving. Tunnel wired road studs is also called photoelectric pavement marker,LED road stud and road pavement marker.The mainly function is Pavement sight induced warning.It Is a clear, eye-catching adjustable active flashing light led road signs,Continuously laying a light-emitting lane contour line.
It is not only play excellent guide obvious warning but also add beautiful landscape.It is mainly install in the main highways, tunnels, approaches shoulder, around the island, traffic islands, underground parking entrance of the tunnel wall and the curb or on the road along the side walls.
Specification:
- Size: 105x95x25 mm
- Material: cast aluminum and PC Lens
- Solar panel,rechargeable battery: 1.2V/800MAH NI-MH, 0.3W
- Waterproof: IP68
- Weight capacity: 30 tons
- Visible distance: over 800 meters
|
Product |
Wired Road Stud |
|
LED Color |
White and Yellow |
|
Shell Material |
Aluminum or Plastic |
|
Size |
100*105*19mm |
|
Weight |
350 g/pc |
|
Power |
＜1W |
|
Light intensity |
＞3000 mcd |
|
LED QTY |
6PCS white and 6PCS yellow (can customize) |
|
Visual Distance |
>800 Meters |
|
Protect Level |
IP67 |
|
Work Temperature |
-30°C +70°C |
|
Weight Capacity |
>20 Tons |
|
Warranty |
12 Months |
|
Lifespan |
≥100000 hours |
|
Working voltage |
24V DC(or 220VAC) |
|
Main Device |
Shell,LED,Switched-mode power supply,Constant current protection circuit,wire,resin package |
|
Chip Brand |
Epistar |
|
Packaging |
epoxy resin |
|
Connection |
0.5–1.0mflexible wire,use heat-shrinkable t bush connection or Plug wire connection |
|
Mounting |
Stainless steel screw and nylon pipe-expansion fixed or special glue for road stud |
|
Wiring method |
Brown wire is positive pole and blue wire is negative pole |
|
Flashing Method |
Flashing or steady |
|
Control Method |
dial switch,can be used by PLC remote control,RS232 and RS485 control |
|
Fault Detection |
open circuit,Overload detection |
|
Malfunction output |
Two-way independent fault output point,Can use remote control detection |
|
Overload protection |
Each route is higher than 2.8 A then it will be automatic protection |
