Description

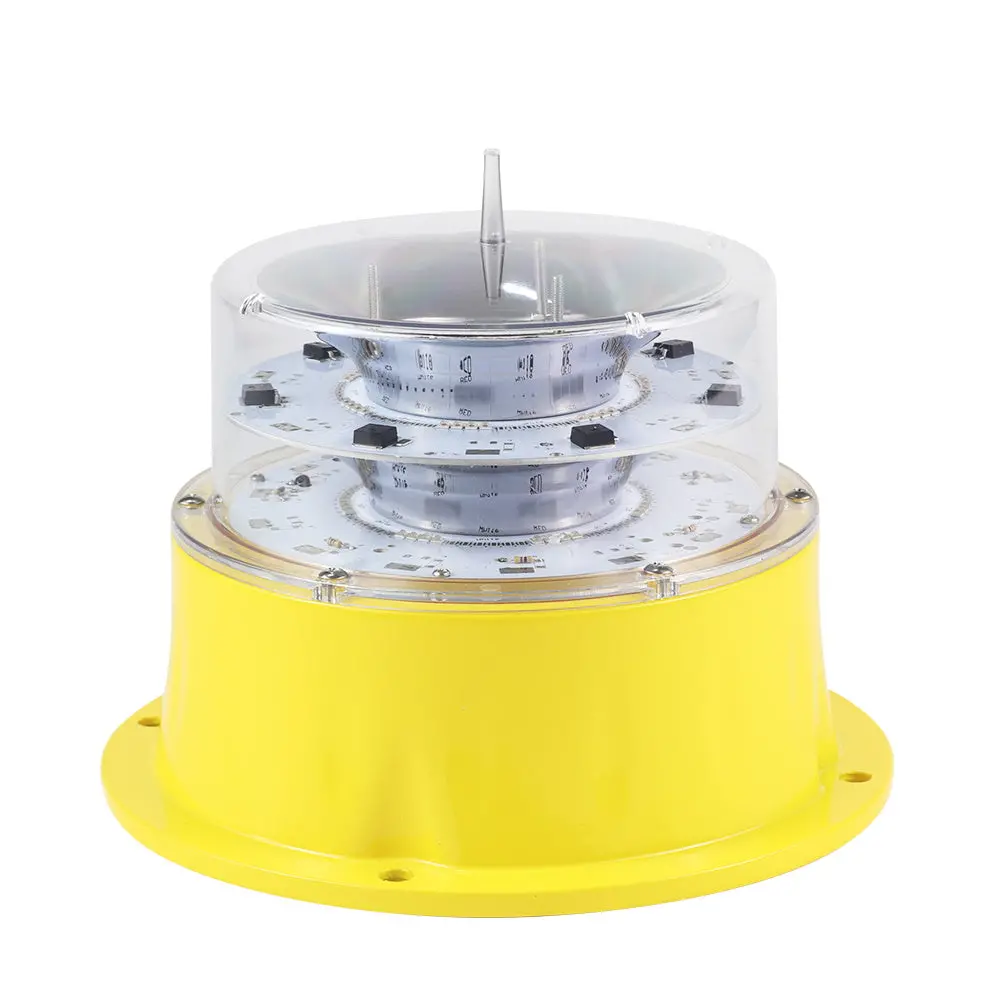

This JW-MI/B aviation obstruction light is medium intensity and type B and is a versatile and reliable lighting solution designed specifically for aviation and obstruction purposes. Whether it’s high-rise buildings, power towers, construction cranes, airports, highway express lanes, radio and television towers, microwave towers, tall chimneys, bridge pylons, exploration well sites, ship navigation, or aircraft runways, this light is perfect for marking potential obstacles.
One of the key features of this product is its solar-powered functionality, ensuring that it operates efficiently in areas where access to electricity may be limited or non-existent. This makes it an ideal choice for remote locations or regions with unreliable power supply. The light harnesses sunlight during the day and utilizes stored energy to emit a powerful and highly visible flash throughout the night.
With its explosion-proof design, this aviation obstruction light offers enhanced safety and durability. It can withstand harsh environmental conditions, ensuring long-lasting performance even in challenging weather conditions. Its robust construction guarantees resistance against impacts, vibrations, and extreme temperatures, making it suitable for a wide range of applications.
Easy installation and low maintenance further add to the appeal of this product. It comes with pre-drilled holes and mounting brackets for effortless installation on various surfaces. Additionally, its self-contained design eliminates the need for frequent bulb replacements or complex wiring arrangements, reducing operational costs and minimizing downtime.
Specification:
|
FAA Standard： |
L-864 |
|
Type： |
JW-MI/B |
|
Power voltage： |
AC 110V/220V,DC 12V/24/48V |
|
Power Supply Frequency： |
50HZ～60HZ |
|
Average power consumption： |
≤20W |
|
Flash rate： |
Flashing 20~40times/min |
|
Continuous working time： |
200ms |
|
Light intensity： |
≥2000cd |
|
Horizontal Out-put： |
360° |
|
Vertical Divergence： |
≥3° |
|
Service Life of the Light Source： |
≥20years |
|
Emitting Color： |
Red |
|
Overall Size： |
255mm×255mm×210mm |
|
Installation Size： |
￠234mm×M8 |
|
IP Protection： |
IP68 |
|
Optically Controlled Ambient Brightness： |
50/100Lux |
|
Ambient Temperature： |
-40℃～70℃ |
|
Net Weight： |
3.8kg |
|
Anti-Wind Ability： |
80m/s |
Features
- High intensity aviation aluminum
- Casting chass IP68
- Low power consumption and long life LED chip
- PC material Lampshade resist corrosion anti UV anti shock, impact resistance
- Lightning and surge protection
- Photoswitch lighting on/off automatic
- Full sealed structure base, casting by high intensity aviation aluminum alloy
- Special LED chips, with brightness, low power consumption and long life
- Its lightning protection ability and control circuit with anti surge protective device that can apply to poor working environment
- A variety of work modes can be customized according to customer’s requirements
- Built-in photocell can switch ON/OFF the light at dawn or at dusk (optional).
Usage/Application:
- Don’t use any out of nominal voltage,or will destroy equipment.
- Do not open it if the device is out of operation, in order not to be hurt by the internal high pressure.
- After finished the installation, the personnel must check whether the device is in a good waterproof processing and whether the screw spikes are tightened.
- Non-professional workers can not do the device maintenance, in order not to expand the error and be hurt.
