Description
Why pay for 3Ms when you only need one?

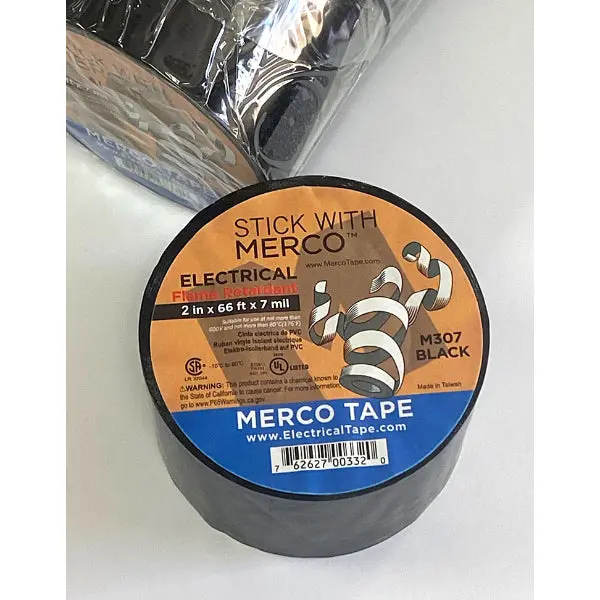

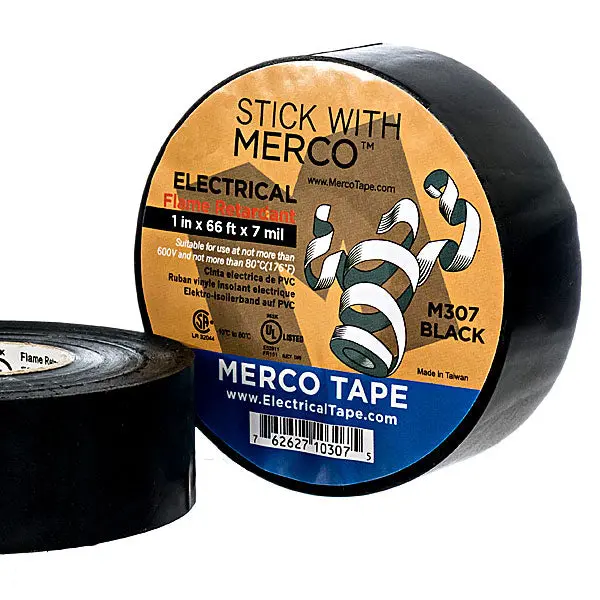

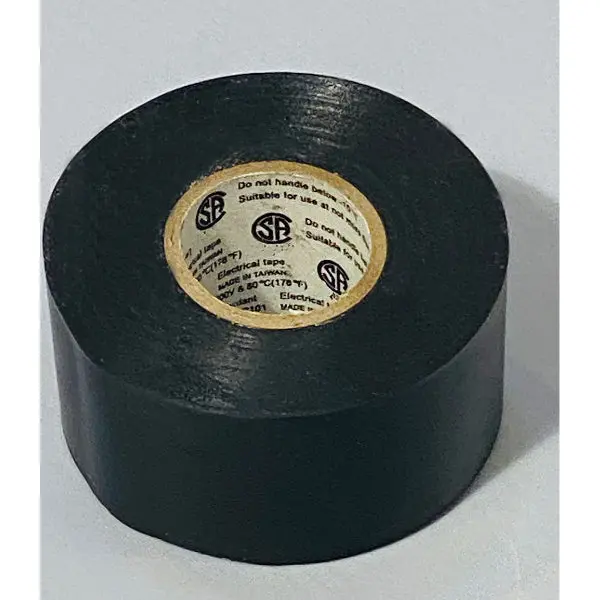

Merco Tape’s M 307 is a Black U.L and C.S.A. approved All Weather-All Temperature electrical that offers super elasticity and highly conformable with excellent insulating properties. It resists abrasion, corrosion, moisture, alkalis and acids and varying weather conditions. It is also UV resistant.
Merco Tape® M307 is ideally suited for moisture tight electrical and mechanical connections. Merco Tape® M 307 offers a working temperature range down to -12C (for UL standards) and -18C (for CSA standards) and is suitable for temperatures as high as 105C.
M307 also meets the requirements for MIL A-A-55089 (which has superseded MIL I-HH-595.)
We only offer our M 307 in full length 66′ rolls, not 60′ like some other manufacturers. Need colors? See our M809. Both are excellent tapes used by many utilities and cable companies throughout the country. See? They don’t want to pay for 3Ms either.
| Specifications and Technical Data Sheet | Material Safety Data Sheet (MSDS, AIS or SDS) |
Available Variations
| Color | Width | Length | Rolls per case |
Tensile lbs/in width |
Adhesion oz/in width |
Thickness mils |
Elongation percent |
Dielectric Strength volts/mil thickness |
Packaging | Country of Origin |
|---|---|---|---|---|---|---|---|---|---|---|
| Black | 3/4 in | 66 ft | 100 | 21 | 23 | 7 | 200 | 1250 | retail ready | Taiwan |
| Black | 1/2 in | 66 ft | 100 | 21 | 23 | 7 | 200 | 1250 | retail ready | Taiwan |
| Black | 1 in | 66 ft | 48 | 21 | 23 | 7 | 200 | 1250 | retail ready | Taiwan |
| Black | 1.5 in | 66 ft | 24 | 21 | 23 | 7 | 200 | 1250 | retail ready | Taiwan |
| Black | 2 in | 66 ft | 24 | 21 | 23 | 7 | 200 | 1250 | retail ready | Taiwan |
