Description

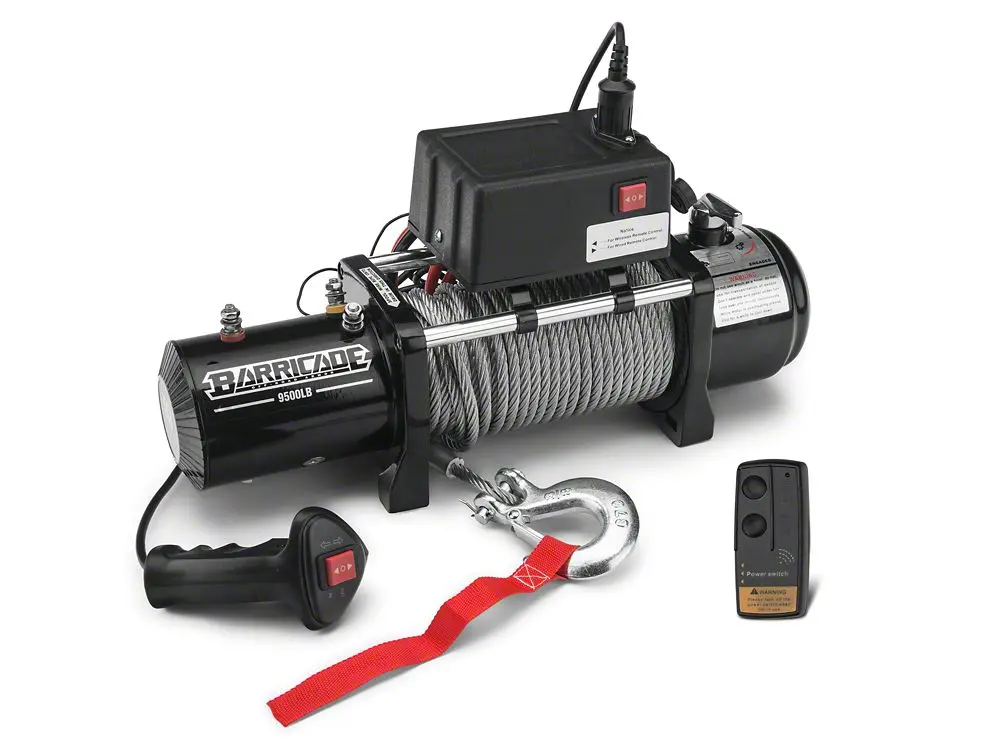

Be Prepared For a Recovery Situation. It doesn’t matter if you are a novice or a serious off-roader, you should take a page out of the Scouts hand book and “be prepared” for what the trail might throw at you. That’s why you should outfit your rig with a reliable recovery system like Barricade Off-Road’s 9,500 lb Winch that includes a Synthetic Rope. This Barricade Winch will help you to get out of the messiest situations.
Heavy Duty 9,500 LB Winch. This Barricade Off-Road Winch is driven by a powerful 5.5 HP series-wound 12-volt electric motor. Featuring a rugged 3-stage planetary gear box with a 218:1 gear ratio, this Barricade Winch provides 9,500 lbs of pulling power. Matched with a sliding ring gear clutch and a two-way automatic, in-the-drum braking system, you know you can always rely on this winch to hold your rig.
Additional Features. This Barricade Off-Road 9,500 lb Winch features a hawse fairlead that helps reduce wear and tear on the 91 foot black synthetic rope while keeping it from binding. This Barricade Winch also includes a wired remote control with a 12 foot lead allowing you to safely stand clear when in operation.
Simple, Bolt-on Installation. Barricade engineered their winches to be a direct bolt-on upgrade that can be installed in under an hour using just basic hand tools. With overall dimensions of 21.3 × 6.1 × 7.7 inches and a mounting bolt pattern of 254mm X 114.3mm, there should be no drilling required for most applications. All necessary mounting hardware is included making this an easy straight forward installation.
Application. This Barricade Off-Road 9,500lb Winch with Black Synthetic Rope features a universal design and will fit most makes and models. A battery with a minimum of 650cca (cold cranking amps) is required for operation.
Line Pull Speeds
- 0 lbs. – 25.6 ft./min
- 2000 lbs. – 16 ft./min
- 4000 lbs. – 11.9 ft./min
- 6000 lbs. – 9.79 ft./min
- 8000 lbs. – 8.2 ft./min.
- 9500 lbs. – 7.2 ft./min
Technical Note. To prevent damage to the synthetic rope from exposure to the sun and weather, a winch cover is required when not in use.
