Description

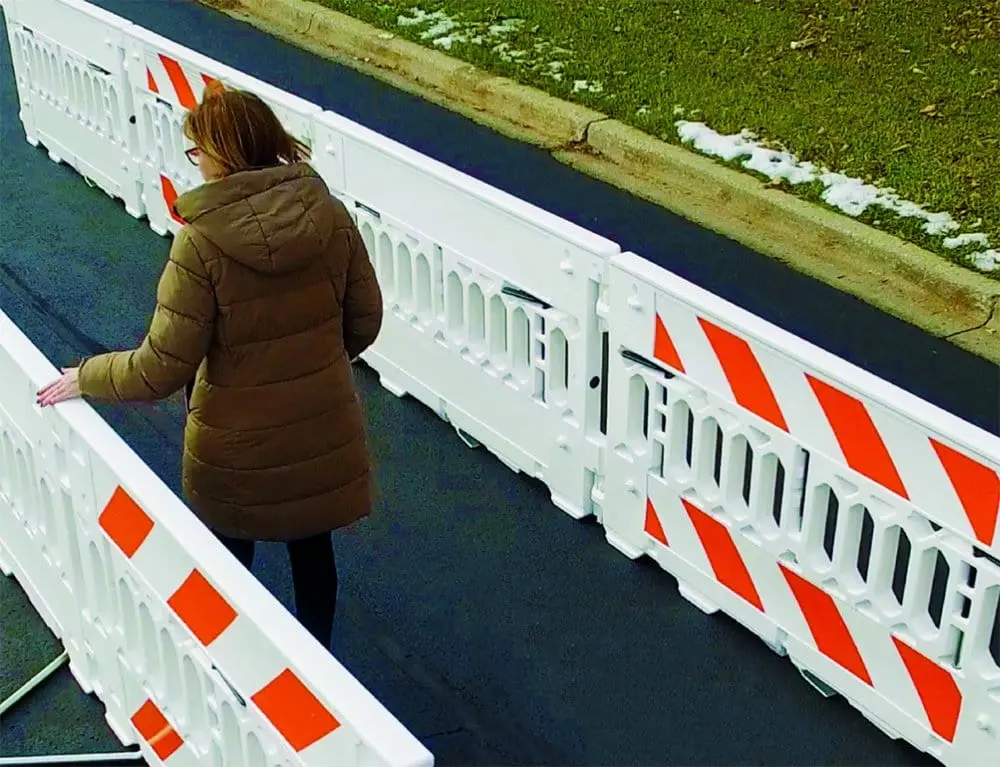

ADA Pathcade Barricade System
Multi-Purpose Barricade System
- Crowd Control
- Manhole Guard
- ADA Pedestrian Pathway System
- Longitudinal Channelizing Device
Multi-functional barricade system meets ADA requirements
- 72″L x 38″H
- Continuously detectable edge at barricade top and bottom
Exclusive tripod leg system
- No sandbags needed when using all 3 feet
- Anti-trip foot on one side
- Two larger feet on other side
- Use only larger feet with sandbags for ADA Compliance
Easy handle turn deploys feet
- Unique soft grip handle system
- Quick turn moves feet out or back in
Stack 20% more
- Nesting system allows for 19 units stacked on pallet
- Lowers transportation costs
- Stacking lugs keep units from shifting
Shape to any layout
- Units pivot 120º
- 3 units in triangle layout for manhole guard
Robust dual connectors
- Create easy to use linking system
Smooth, comfortable guardrail
- Rounded edge on top of panel
Four recessed sheeting areas
- Two sheeting areas, 8″ x 50″, on each side of panel
- Your choice of retroreflective striped sheeting
Light shelves for standard barricade lights
- 2 per section
Holes for attaching signage
- Use screws to attach 20″W x 14″H sign
MASH Accepted
- WZ-428
- Meets MUTCD Standards
Made in the U.S.A.
All Available Models
| Item Number | Name |
| 2008-O | Plastic Crowd Barrier PATHCADE, 2008-O, Orange, no sheeting, NONE |
| 2008-O-EGL | Pedestrian Control Barricade PATHCADE, 2008-O-EGL, Orange. Two Sections of Engineer Grade Striped sheeting on one side of the barricade, LEFT Top & Bottom One Side |
| 2008-O-EGR | Temporary Plastic Barrier PATHCADE, 2008-O-EGR, Orange. Two Sections of Engineer Grade Striped on one side of the barricade, RIGHT Top & Bottom One Side |
| 2008-O-EGLR | Portable Crowd Control Solutions PATHCADE, 2008-O-EGLR, Orange. Two Sections of Engineer Grade Striped sheeting on both sides of the barricade, LEFT/RIGHT Top & Bottom Both Sides |
| 2008-O-HIPL | Safety Barricade for Events PATHCADE, 2008-O-HIPL, Orange. Two Sections of High Intensity Prismatic Grade Striped sheeting on one side of the barricade, LEFT Top & Bottom One Side |
| 2008-O-HIPR | Outdoor Plastic Barricade PATHCADE, 2008-O-HIPR, Orange. Two Sections of High Intensity Prismatic Grade Striped on one side of the barricade, RIGHT Top & Bottom One Side |
| 2008-O-HIPLR | Indoor Pedestrian Barrier PATHCADE, 2008-O-HIPLR, Orange. Two Sections of High Intensity Prismatic Grade Striped sheeting on both sides of the barricade, LEFT/RIGHT Top & Bottom Both Sides |
| 2008-O-DGL | Plastic Roadway Barrier PATHCADE, 2008-O-DGL, Orange. Two Sections of Diamond Grade Striped sheeting on one side of the barricade, LEFT Top & Bottom One Side |
| 2008-O-DGR | Lightweight Crowd Control Barrier PATHCADE, 2008-O-DGR, Orange. Two Sections of Diamond Grade Striped on one side of the barricade, RIGHT Top & Bottom One Side |
| 2008-O-DGLR | High-Density Polyethylene Barricade PATHCADE, 2008-O-DGLR, Orange. Two Sections of Diamond Grade Striped sheeting on both sides of the barricade, LEFT/RIGHT Top & Bottom Both Sides |
| 2008-O-EGL-T | UV-Resistant Plastic Barrier PATHCADE, 2008-O-EGL-T, Orange. One Section of Engineer Grade Striped sheeting on one side of the barricade, LEFT Top Only One Side |
| 2008-O-EGR-T | Interlocking Plastic Barricade PATHCADE, 2008-O-EGR-T, Orange. One Section of Engineer Grade Striped on one side of the barricade, RIGHT Top Only One Side |
| 2008-O-EGLR-T | Durable Plastic Barricade for Concerts PATHCADE, 2008-O-EGLR-T, Orange. One Section of Engineer Grade Striped sheeting on both sides of the barricade, LEFT/RIGHT Top Only Both Sides |
| 2008-O-HIPL-T | Pedestrian Safety Barrier PATHCADE, 2008-O-HIPL-T, Orange. One Section of High Intensity Prismatic Grade Striped sheeting on one side of the barricade, LEFT Top Only One Side |
| 2008-O-HIPR-T | Easy-to-Install Plastic Barricade PATHCADE, 2008-O-HIPR-T, Orange. One Section of High Intensity Prismatic Grade Striped on one side of the barricade, RIGHT Top Only One Side |
| 2008-O-HIPLR-T | Stackable Crowd Control Barrier PATHCADE, 2008-O-HIPLR-T, Orange. One Section of High Intensity Prismatic Grade Striped sheeting on both sides of the barricade, LEFT/RIGHT Top Only Both Sides |
| 2008-O-DGL-T | Weather-Resistant Pedestrian Barrier PATHCADE, 2008-O-DGL-T, Orange. One Section of Diamond Grade Striped sheeting on one side of the barricade, LEFT Top Only One Side |
| 2008-O-DGR-T | ADA-Compliant Plastic Barricade PATHCADE, 2008-O-DGR-T, Orange. One Section of Diamond Grade Striped on one side of the barricade, RIGHT Top Only One Side |
| 2008-O-DGLR-T | Modular Pedestrian Control Systems PATHCADE, 2008-O-DGLR-T, Orange. One Section of Diamond Grade Striped sheeting on both sides of the barricade, LEFT/RIGHT Top Only Both Sides |
| 2008-W | Heavy-Duty Plastic Barrier PATHCADE, 2008-W, White, no sheeting, NONE |
| 2008-W-EGL | Plastic Barricade with Reflective Strips PATHCADE, 2008-W-EGL, White. Two Sections of Engineer Grade Striped sheeting on one side of the barricade, LEFT Top & Bottom One Side |
| 2008-W-EGR | Crowd Management Barrier PATHCADE, 2008-W-EGR, White. Two Sections of Engineer Grade Striped on one side of the barricade, RIGHT Top & Bottom One Side |
| 2008-W-EGLR | Water-Fillable Plastic Barricade PATHCADE, 2008-W-EGLR, White. Two Sections of Engineer Grade Striped sheeting on both sides of the barricade, LEFT/RIGHT Top & Bottom Both Sides |
| 2008-W-HIPL | Eco-Friendly Crowd Barrier PATHCADE, 2008-W-HIPL, White. Two Sections of High Intensity Prismatic Grade Striped sheeting on one side of the barricade, LEFT Top & Bottom One Side |
| 2008-W-HIPR | Plastic Barricade for Road Construction PATHCADE, 2008-W-HIPR, White. Two Sections of High Intensity Prismatic Grade Striped on one side of the barricade, RIGHT Top & Bottom One Side |
| 2008-W-HIPLR | Pedestrian Barricade for Festivals PATHCADE, 2008-W-HIPLR, White. Two Sections of High Intensity Prismatic Grade Striped sheeting on both sides of the barricade, LEFT/RIGHT Top & Bottom Both Sides |
| 2008-W-DGL | Emergency Response Plastic Barrier PATHCADE, 2008-W-DGL, White. Two Sections of Diamond Grade Striped sheeting on one side of the barricade, LEFT Top & Bottom One Side |
| 2008-W-DGR | Quick Deployment Barricade PATHCADE, 2008-W-DGR, White. Two Sections of Diamond Grade Striped sheeting on one side of the barricade, RIGHT Top & Bottom One Side |
| 2008-W-DGLR | Plastic Barricade for Public Events PATHCADE, 2008-W-DGLR, White. Two Sections of Diamond Grade Striped sheeting on one side of the barricade, LEFT/RIGHT Top & Bottom Both Sides |
| 2008-W-EGL-T | Pedestrian Dividers and Barricade PATHCADE, 2008-W-EGL-T, White. One Section of Engineer Grade Striped sheeting on one side of the barricade, LEFT Top Only One Side |
| 2008-W-EGR-T | Versatile Plastic Barrier PATHCADE, 2008-W-EGR-T, White. One Section of Engineer Grade Striped on one side of the barricade, RIGHT Top Only One Side |
| 2008-W-EGLR-T | Pedestrian Queue Barrier PATHCADE, 2008-W-EGLR-T, White. One Section of Engineer Grade Striped sheeting on both sides of the barricade, LEFT/RIGHT Top Only Both Sides |
| 2008-W-HIPL-T | Expandable Plastic Barricade PATHCADE, 2008-W-HIPL-T, White. One Section of High Intensity Prismatic Grade Striped sheeting on one side of the barricade, LEFT Top Only One Side |
| 2008-W-HIPR-T | Plastic Barricade for Sporting Events PATHCADE, 2008-W-HIPR-T, White. One Section of High Intensity Prismatic Grade Striped on one side of the barricade, RIGHT Top Only One Side |
| 2008-W-HIPLR-T | Customizable Plastic Barrier PATHCADE, 2008-W-HIPLR-T, White. One Section of High Intensity Prismatic Grade Striped sheeting on both sides of the barricade, LEFT/RIGHT Top Only Both Sides |
| 2008-W-DGL-T | Pedestrian Control for Retail Spaces PATHCADE, 2008-W-DGL-T, White. One Section of Diamond Grade Striped sheeting on one side of the barricade, LEFT Top Only One Side |
| 2008-W-DGR-T | Plastic Barricade for Schools PATHCADE, 2008-W-DGR-T, White. One Section of Diamond Grade Striped on one side of the barricade, RIGHT Top Only One Side |
