- DuPont™ Kapton® polyimide film does not soften at elevated temperatures, thus the film provides an excellent release surface at elevated temperatures
- No rework required, enabling high productivity
- Protects surfaces helping reduce replacement parts
- Available on cardboard or polyethylene core

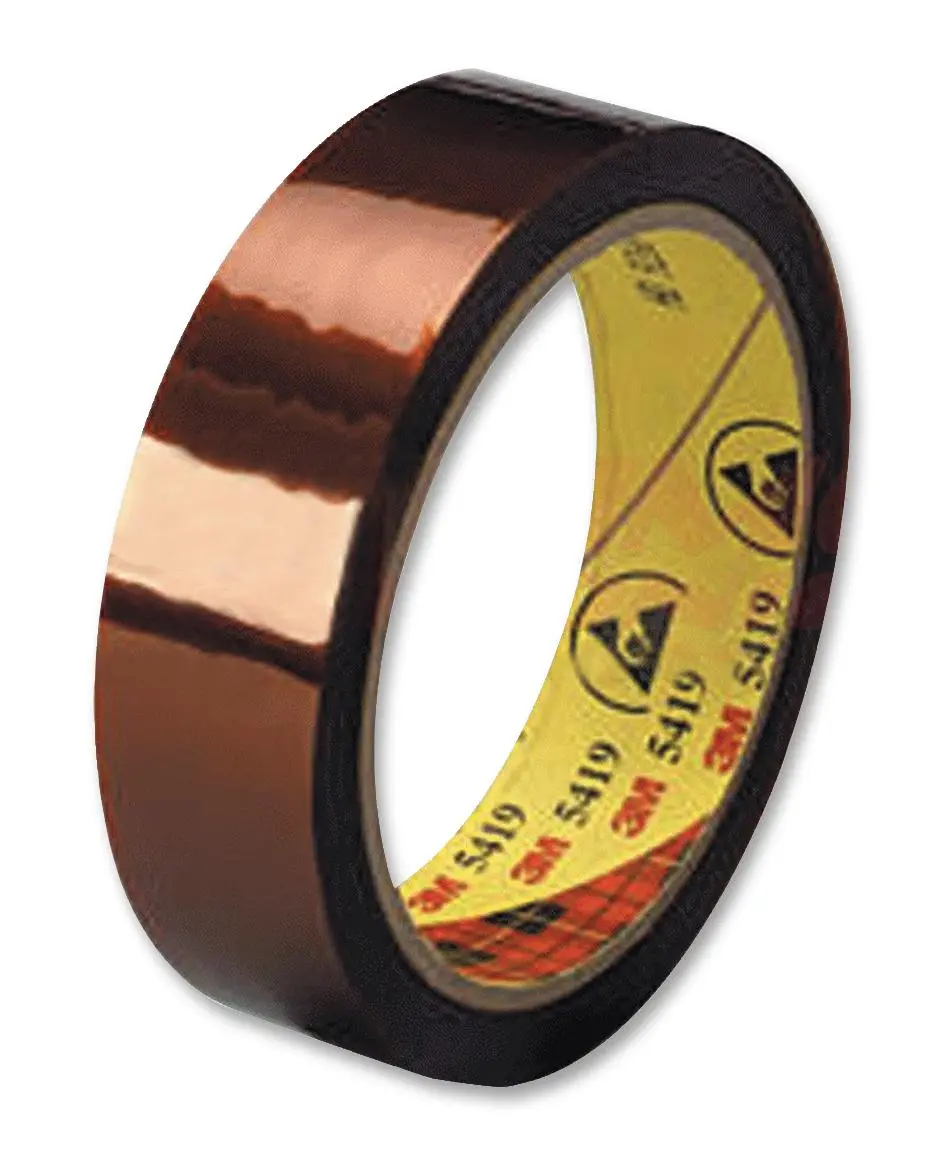

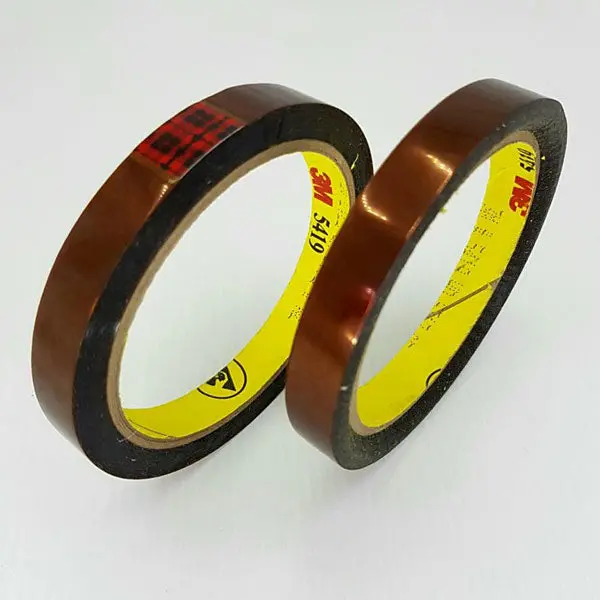

3M™ Low-Static Polyimide Film Tape 5419 with DuPont™ Kapton® polyimide film and silicone adhesive used for PCB solder masking and other high-temperature applications. Low-Static. Gold, 2.7-mil thick. .
Employs a proprietary technology that results in extremely low electrostatic discharge at unwind and removal from the PWB. Conventional polyimide tapes can typically generate over 10,000 volts during use which can damage board mounted electronic components. 3M tape 5419 overcomes this problem without any of the typical drawbacks of conventional “anti-static” or “static-free” tapes (e.g., variable adhesion and opaqueness).
Standard Lead Time: 7 Calendar Days.
| Specifications and Technical Data Sheet | Material Safety Data Sheet (MSDS, AIS or SDS) |
Available Variations
| Color | Width | Length | Rolls per case |
Tensile lbs/in width |
Adhesion oz/in width |
Thickness mils |
Elongation percent |
Packaging | Country of Origin |
|---|---|---|---|---|---|---|---|---|---|
| Amber | 1/2 in | 36 yd | 18 | 33 | 20 | 2.7 | 60 | industrial | USA |
| Amber | 3/4 in | 36 yd | 12 | 33 | 20 | 2.7 | 60 | industrial | USA |
| Amber | 1 in | 36 yd | 9 | 33 | 20 | 2.7 | 60 | industrial | USA |
| Amber | 2 in | 36 yd | 6 | 33 | 20 | 2.7 | 60 | industrial | USA |
